Two-dimensional material micro-nano processing - in situ testing
产品:Transient absorption
ID：BK20201103
CAS：
Detailed
Application areas:
1. Detection of the original process of light capture of plant organic pigments
2. Heat conduction of metal/semiconductor thin film materials

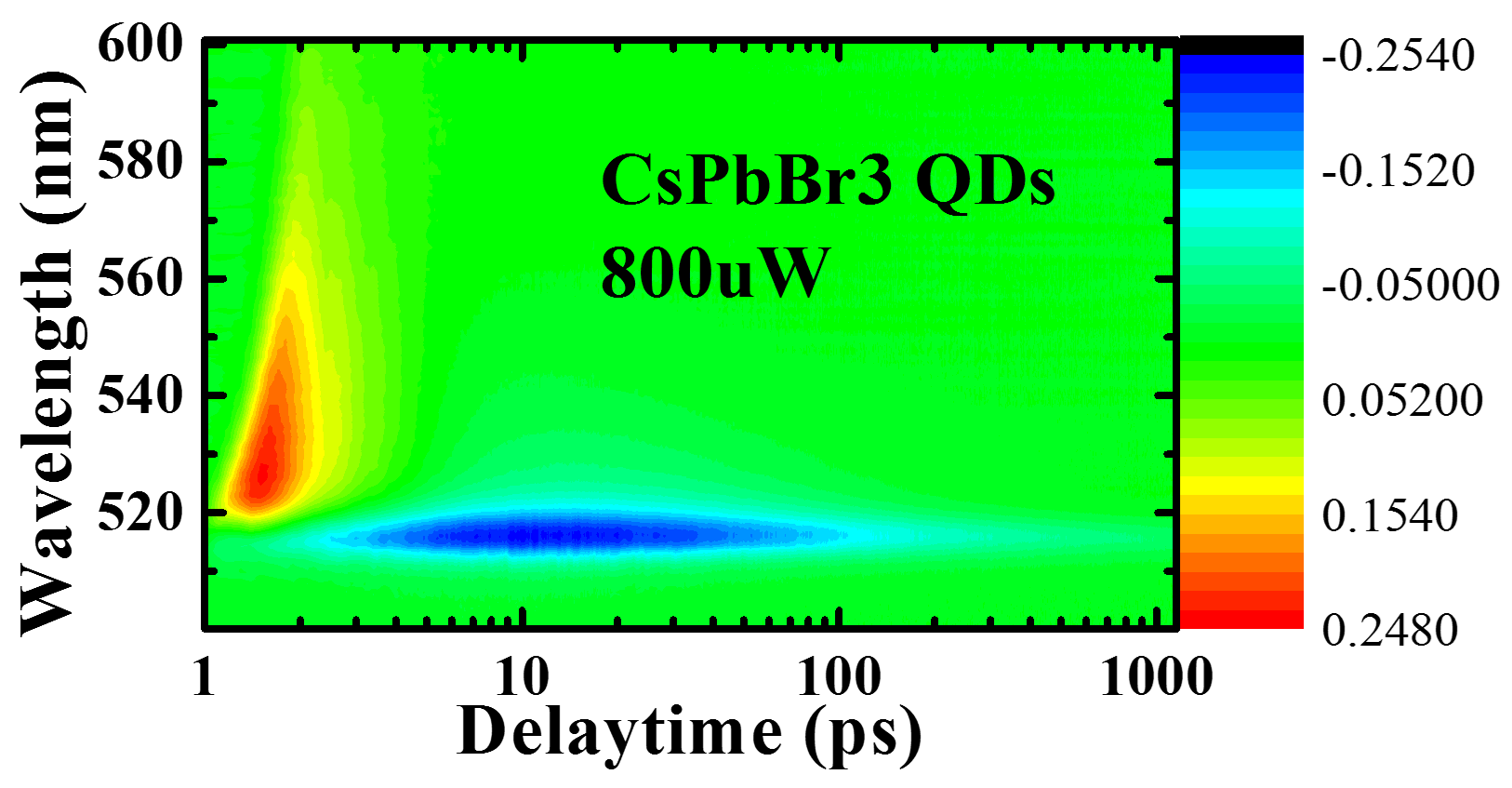

3. Photoinduced charge transfer and separation of nanomaterials such as perovskite/quantum dots

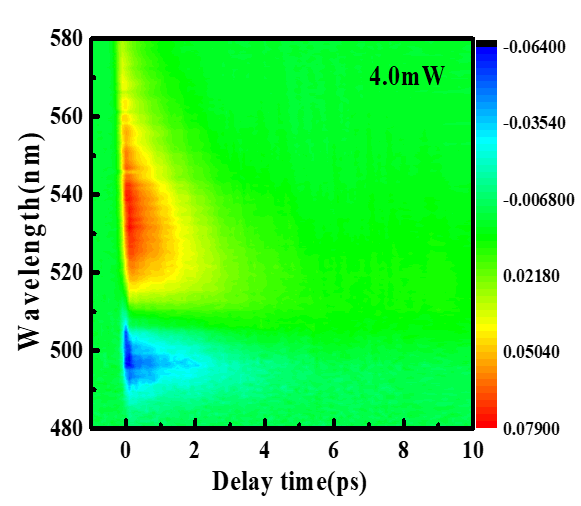

4. Saturated absorption kinetic process of two-dimensional material solution
Basic parameters of femtosecond transient absorption device:
1. Detecting light spectrum range: 410 nm-780 nm
2. Pump wavelength: 400 nm or OPA
3. Optical delay time: 100 fs～1.5 ns
4. Detection accuracy: about 0.1-1 mOD
5. Detection equipment: fast response spectrometer
6. Working frequency of chopper: 500 Hz

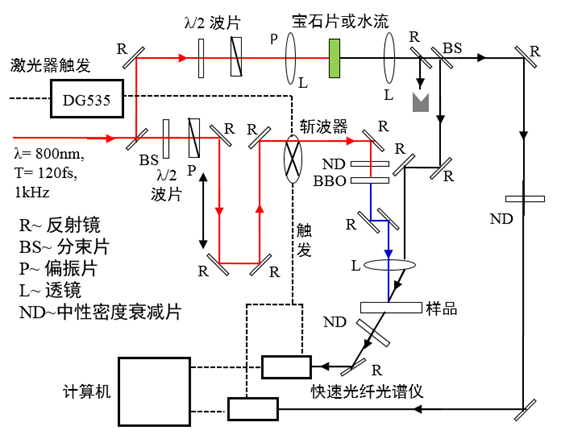

Femtosecond transient absorption experiment device

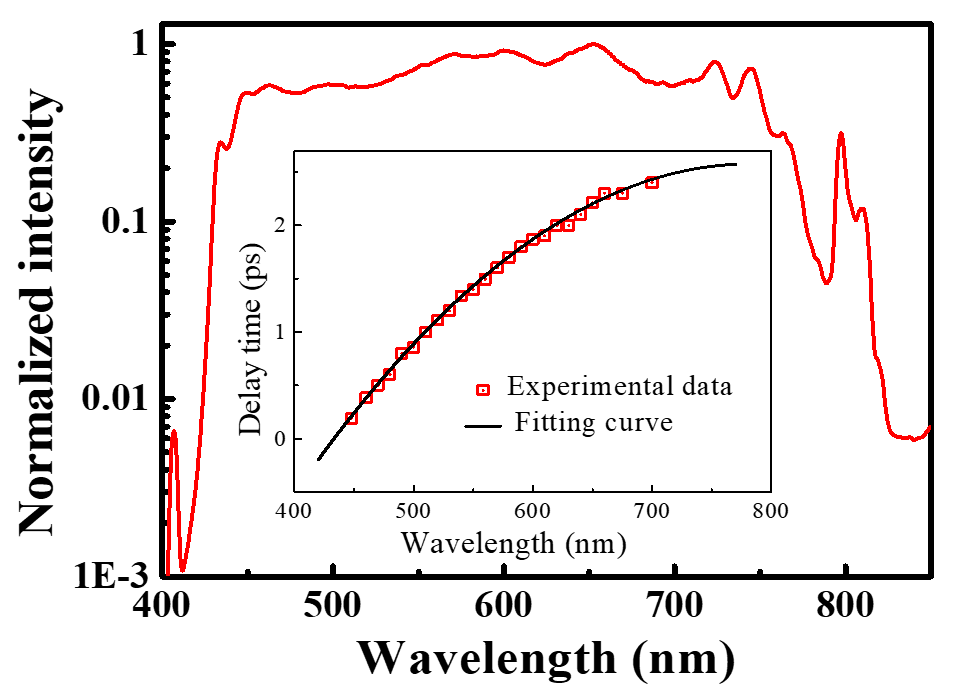

Supercontinuous white light spectrum and dispersion calibration curve
Gold nano film
This is a customized service, please contact us for details
