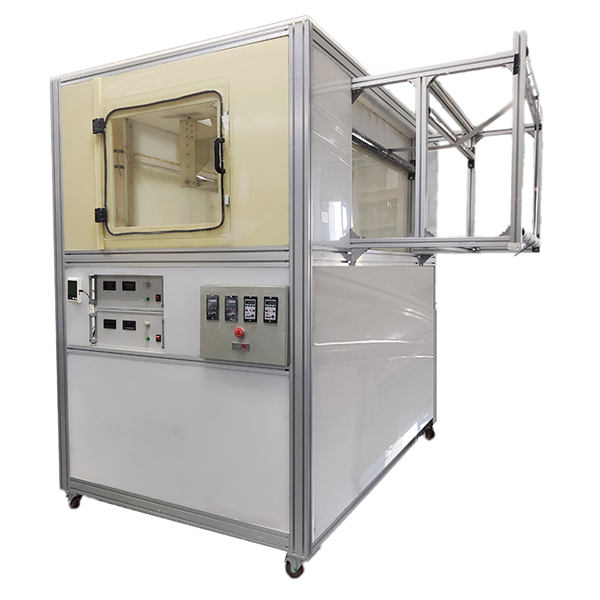

Equipment functions and parameters
Roll-to-roll continuous production, can use 5 sets of spinning solution to spin composite membrane at the same time; high production efficiency (the standard nanofiber membrane output of disposable medical masks can reach 330m2/hr); temperature and humidity controllable, air intake and exhaust system; Digital display control, real-time monitoring of rewinding and unwinding speed, temperature and humidity, voltage and current; negative pressure cavity design to prevent organic gas leakage; grounding system, emergency shutdown, short circuit protection, overvoltage protection, overcurrent protection, safety lock, explosion-proof Safety settings such as glass, warning system, etc. Applications include masks, protective clothing, dust filtration, air filtration, water filtration, etc.

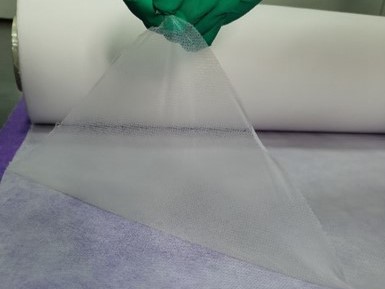

Polymer fiber nanofiltration membrane on non-woven fabric
parameter configuration
High voltage power supply
(1) Built in the control panel on the left side of the device, the panel displays real-time voltage and current;
(2) 2 power supplies (domestic): adjustment accuracy 0.01kV (DC);
(3) 1 set of positive power supply: 0~+30kV (provided for the use of the bottom rotating nozzle);
(4) 1 set of negative power supply: 0～-30kV (for switching use of all receiving devices on the upper part, directional traction collection);
(5) Display mode: digital display;
(6) Protection mode: current automatic overload safety protection;
(7) Control method: manual;
sprinkler
(1) Independent detachable rotating nozzle, with a special device for adjusting the tension, and a roll of spare metal wire is randomly configured;
(2) The number of nozzles can be optionally expanded to five;
(3) Effective working length: 1000mm;
(4) Adjustable rotation speed: 0～140rpm;
tank
(1) 1000ml special electrospinning solution tank, machined to prevent leakage, easy to clean;
(2) The number of liquid tanks can be optionally expanded to five to improve the spinning efficiency;
receiving device
(1) Tape-and-reel collection device: moving speed 0.33～600mm/min;
(2) Size: width 1000mm, the equipment has its own continuous winding and unwinding system;
(3) Insulation protection of negative receiving plate;
Receive spacing to move components up and down
(1) The upper limit of the spacing can be adjusted to meet different spinning needs;
control device
(1) Digital display industrial control, integrated in the equipment panel, knob digital display control, real-time response to parameter changes during the working process without stopping;
(2) It can control the rotation of the nozzle, and the receiving and rotating device can operate together or independently;
Environmental control
(1) Integrated industrial dehumidifier built-in;
(2) Space humidity: 30% to 80%, the humidity can be controlled continuously;
(3) Space pressure: normal pressure;
(4) Space sealing: the overall sealing of the spinning chamber;
accessories
(1) Micro LED observation light;
(2) Air outlet (with ventilation hose pipe, length 2m);
(3) High-volume ventilation fans at the top (flow rate ≥ 150m3/hr);
(4) Maintenance/use toolbox (including supporting tools);
safety devices
(1) Power supply overvoltage protection;
(2) Power overcurrent protection;
(3) Work running warning lights;
(4) Data memory recovery after power failure;
(5) Emergency stop button;
(6) Large size explosion-proof tempered glass observation window;
Dimensions
(1) Dimensions: 138(W)×210(L)×205(H)cm;
(2) Shell material: aluminum alloy frame, PP insulating shell, electrospinning chamber with special insulation treatment;
(3) Weight: about 200kg;
(4) Power supply requirements: 220V, 50Hz;
(5) Rated power: ≤1000W;
|
Warm tip: the products supplied by Beijing Beike Xincai Technology Co., Ltd. are only used for scientific research, not for human body |
