CVD tungsten diselenide film: WSe2 single layer triangular single crystal grain





ID：BK2020073002

CAS：

price：
$429


Item ID：BK2020073002-09

specification：

5 minutes to choose the product plan

E-mail：mxenes@163.com

Detailed

Manufacturing method:

Chemical Vapor Deposition (CVD)

Product introduction:

Six Carbon Technology‘s WSe2 films are divided into many types:
1) A single layer of discretely distributed triangular-shaped single crystal grains, the triangle side length is generally tens to 100 microns.
2) A single-layer continuous film that continues to grow together from triangular grains.
3) Multi-layer WSe2 continuous film.
4) Substrate: WSe2 has many optional substrates, among which the sapphire substrate is a direct deposition product. Other substrates such as: SiO2/Si, 　silicon wafer, PET, PI, ITO, FTO, glass, metal substrates, etc. are transferred to the customer‘s required substrate by growing on sapphire.

Application areas:

Optoelectronic devices, microelectronic devices, biological sensing, chemical sensing and other fields.

Packaging and specifications

10*10mm, 15*15mm, 20*20mm, 2 inch disc, 4 inch disc or customized size specified by the customer.
Purified vacuum packaging, 1 piece/box, 5 pieces/box. 10 pieces/box.

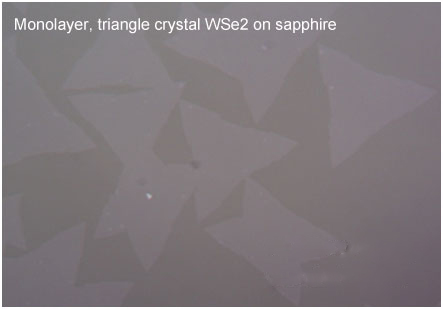

Single layer WSe2 isolated die

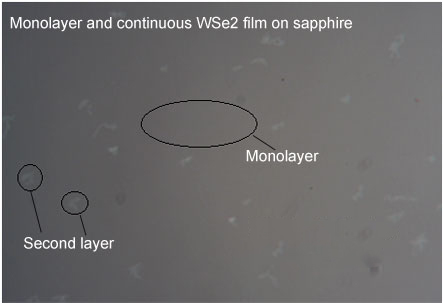

Single layer WSe2 continuous film

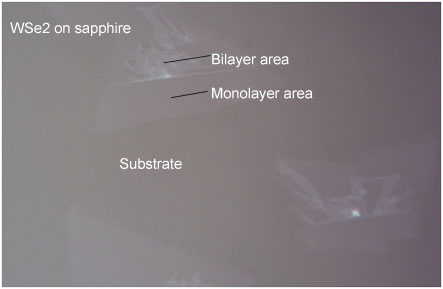

Single and double layer hybrid WSe2

展开

Manufacturing method:
Chemical Vapor Deposition (CVD)

Product introduction:
Six Carbon Technology‘s WSe2 films are divided into many types:
1) A single layer of discretely distributed triangular-shaped single crystal grains, the triangle side length is generally tens to 100 microns.
2) A single-layer continuous film that continues to grow together from triangular grains.
3) Multi-layer WSe2 continuous film.
4) Substrate: WSe2 has many optional substrates, among which the sapphire substrate is a direct deposition product. Other substrates such as: SiO2/Si, 　silicon wafer, PET, PI, ITO, FTO, glass, metal substrates, etc. are transferred to the customer‘s required substrate by growing on sapphire.

Application areas:
Optoelectronic devices, microelectronic devices, biological sensing, chemical sensing and other fields.

Packaging and specifications
10*10mm, 15*15mm, 20*20mm, 2 inch disc, 4 inch disc or customized size specified by the customer.
Purified vacuum packaging, 1 piece/box, 5 pieces/box. 10 pieces/box.

Single layer WSe2 isolated die

Single layer WSe2 continuous film

Single and double layer hybrid WSe2,

Warm tip: the products supplied by Beijing Beike Xincai Technology Co., Ltd. are only used for scientific research, not for human body

Item ID	CAS	ID	Pack	Parameter	Stock	Make up	Price
BK2020073002-01		BK2020073002	单层三角单晶晶粒	SiO2/Si（300nm氧化层）	100		$407
BK2020073002-02		BK2020073002	单层三角单晶晶粒	SiO2/Si（其他厚度）	100		$450
BK2020073002-03		BK2020073002	单层三角单晶晶粒	蓝宝石（单面抛光）	100		$234
BK2020073002-04		BK2020073002	单层三角单晶晶粒	蓝宝石（双面抛光）	100		$234
BK2020073002-05		BK2020073002	单层三角单晶晶粒	光学石英	100		$407
BK2020073002-06		BK2020073002	单层三角单晶晶粒	柔性PET	100		$407
BK2020073002-07		BK2020073002	单层三角单晶晶粒	硅片	100		$407
BK2020073002-08		BK2020073002	单层三角单晶晶粒	高阻本征硅（>10000ohm.cm）太赫兹专用	100		$413
BK2020073002-09		BK2020073002	单层三角单晶晶粒	SOI	100		$429
